IEC 60884 Plug Pin Connector 0 ℃- 150℃ Temperature Rising Test Device

Name: IEC 60884 Plug Pin Connector 0 150 Temperature Rising Test Device
Brand: HongCe
Price: 1 USD

Quality IEC 60884 Plug Pin Connector 0 ℃- 150℃ Temperature Rising Test Device for sale

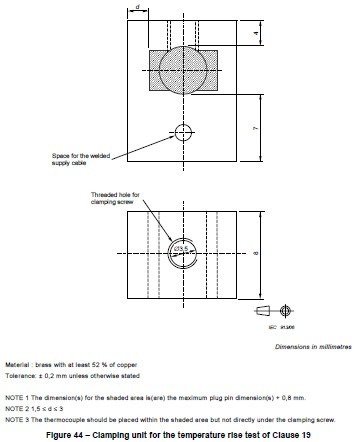

Standard : IEC 60884 – 2006 (Figure 44), VDE0620

Temperature measurement table : 0-150°

Work station : Can be customized

Timer : 0-9999s adjustable

Certification : Calibration certificate(cost additional)

Price : Negotiatable

Place of Origin : China

Brand Name : HongCe

Model Number : TR-1

MOQ : 1 set

Packaging Details : Plywood

Delivery Time : 25 days

Payment Terms : T/T

Supply Ability : 15 set per month

Contact Now

Temperature Rising Tester

Product details:

The device is made and manufactured according to the related standard requirement of temperature rising, such as IEC 60884 – 2006 (Figure 44), VDE0620 etc. It is applicable to the temperature rising of electronic accessories in working position.

Technical parameters:

Item	TR-1	TR-2	TR-3
Working station	6	6	6
Testing current	0-40A	0-125A	50-1000A is adjustable
Testing voltage	＜12V	＜12V	5V,12V,24V,48V
Timer	0-9999s is adjustable,digital display	0-9999s is adjustable,digital display	0-9999s is adjustable,digital display
Temperature measurement table	0-150°digital display	0-150°digital display	0-150°digital display
Power supply	220V,50HZ	220V,50HZ	220V,50HZ
standard	GB2099.1-2008	GB13140.1	UL
Test object	Plug pin	connector	circuit board

● When the current exceeds the required value, the device stops working automatically. The range of the alarm is from 0 to the maximum current. The overcurrent time can be recorderd automatically.

● When the temperature exceeds the required value, the device stops working automatically. The range of the alarm is from 0 to 150℃. The overtemperature time is recorderd automatically.

IEC 60884 Plug Pin Connector 0 ℃- 150℃ Temperature Rising Test Device
