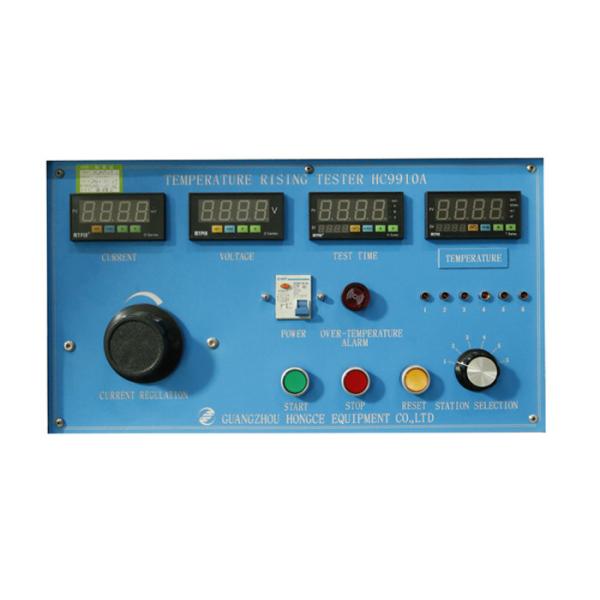

Household Plug Socket Tester For The Temperature Rise Test Of IEC60884-1 Clause 19 Figure 44 high - precision 6 stations

Brand Name : HongCe

Model Number : HC9910A

Certification : Third part calibration certificate(cost additional)

Place of Origin : Chnia

MOQ : 1 Set

Price : Negotiatable

Payment Terms : L/C, T/T

Supply Ability : 20 set per month

Delivery Time : 30 days

Packaging Details : Plywood

Test station : 6 stations

Test current : 0-125A

Test voltage : ＜12V

Temperature : 0-150°C

Contact Now

Device For The Temperature Rise Test Of IEC60884-1 Clause 19 Figure 44 high-precision 6 stations


Standard:
IEC60884-1 Plugs and socket-outlets for household and similar purposes – Part 1:General requirements clause 19 and figure 44.

Application:
It is mainly used to test the plug device and its accessories around, such as dimmers, fuses, switches, power regulators, etc., and it cannot reach excessive temperatures during normal use.

Test sample:
Household plugs and sockets.

Features:
This device adopts a high-precision digital meter, sensor signal input with 6 work stations, over-temperature and overload protection with voice prompts, strong applicability and stable performance.

Parameter:

ItemParameters
Test station6
Test current0-125A adjustable
Test voltageLess than 12V
Timer0-9999s, adjustable, digital display
Temperature instruments0-150°C, digital display
Power supply220V, 50HZ
Test objectPlug pin
StandardIEC60884-1 Fig 44 Clause 19


Connecting wire and current matching table:

Sizes of the wire (single copper core)Max. Load Current
1.5mm²20A
2.5mm²28A
4mm²38A
6mm²48A
10mm²65A
16mm²88A
25mm²113A
50mm²142A
70mm²171A
95mm²218A
120mm²265A
150mm²305A
185mm²355A
240mm²410A
300mm²490A
400mm²560A
500mm²650A
630mm²750A
2.5mm²880A
800mm²1100A
