2.5N Plug Socket Torque Tester For IEC60884-1 0-250mm Balancing Arm Easy Adjustment Simple Operation

Name: 25N Plug Socket Torque Tester For IEC608841 0250mm Balancing Arm Easy Adjustment Simple Operation
Brand: HongCe
Price: 1 USD

Quality 2.5N Plug Socket Torque Tester For IEC60884-1 0-250mm Balancing Arm Easy Adjustment Simple Operation for sale

Brand Name : HongCe

Model Number : HC9908

Certification : Calibration certificate(cost additional)

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 30 set per month

Delivery Time : 3 days (in stock)

Packaging Details : Plywood

Balancing arm : 0-250mm

Test station : 1 station

Test weight : 2.5N

Operating method : By manual

Contact Now

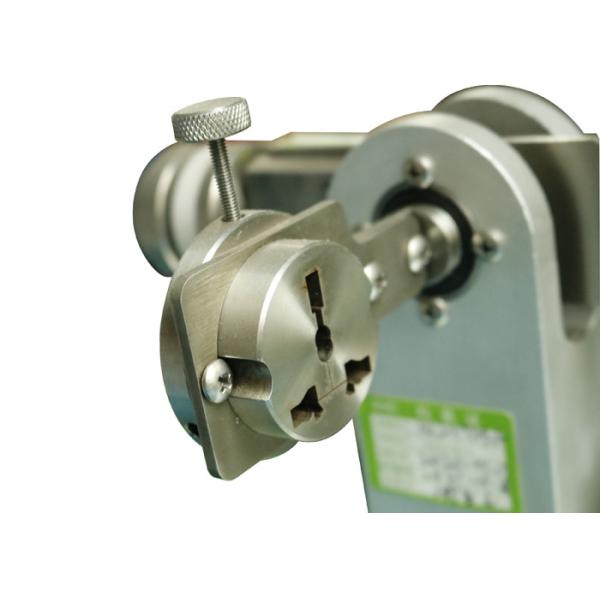

Plug Socket Torque Tester HC9908

Standard:

IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 14.23.2

Standard description:

The equipment is inserted into a fixed socket-outlet complying with this standard, the socket-outlet is pivoted about a horizontal axis through the axis of the live socket-contacts at a distance of 8 mm behind the engagement face of the socket-outlet and parallel to this engagement face.

The additional torque which has to be applied to the socket-outlet in order to maintain the engagement face in the vertical plane shall not exceed 0.25 Nm.

Application:

This device is use to test the strain force of insertion. A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets.

Test sample:

Fixed socket-outlet, plug-in equipment.

Feature:

This device has the advantages of good sensitivity, easy adjustment, simple operation and beautiful appearance. Equipped with a variety of socket fixture, strong practicality.

Parameters:

Distance from the contact surface and the Axis of the surface	8mm
Balancing arm	0-250mm
Weight	2.5N, can achieve 0.25Nm to 0.4Nm torque force
Configure	all-purpose plug(suit for GB and BS plug), UL plug, European plug, one each
