Battery Drop Test Machine for Lithium Battery Impact Testing | Adjustable Free Fall 400–1500mm | Pneumatic Clamping | IEC 62133 & UN38.3 Battery Testing Equipment
The Battery Drop Test Machine is designed to simulate free-fall impact conditions for lithium batteries, battery packs, and electronic products. With precise height control, pneumatic clamping, and stable structure, it ensures reliable safety testing and compliance with international standards.
Product Overview
When it comes to battery safety, real-world simulation makes the difference between compliance and risk.

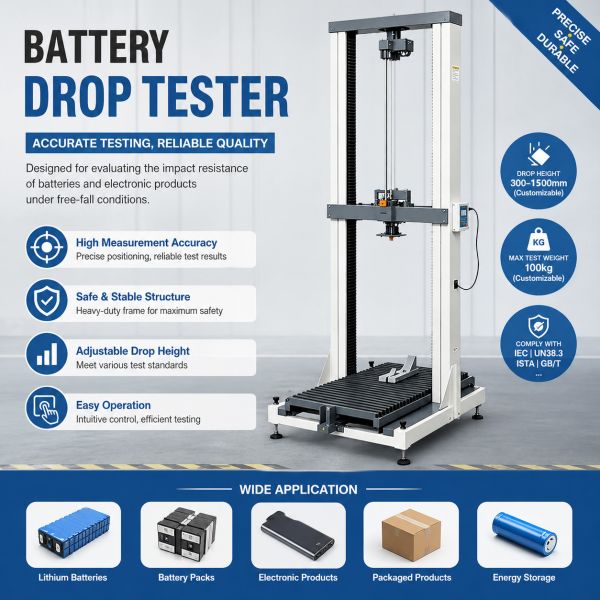

The Battery Drop Test Machine is engineered to replicate free-fall impact scenarios that batteries may encounter during transportation, handling, or daily use. By accurately controlling drop height and ensuring consistent release conditions, it allows manufacturers to evaluate structural integrity and safety performance with confidence.
Built with a pneumatic clamping system and precision height measurement, the machine guarantees repeatability and operational stability. Whether in a laboratory, production line, or third-party testing facility, it serves as a reliable solution for battery safety validation.
As a direct manufacturer, HongCe provides not just equipment, but a long-term partnership—covering customization, technical support, and after-sales service.
International Standards
- UN38.3
- Section 38.3.4.6: Drop Test for transport safety
- IEC 62133
- Mechanical test requirements for portable batteries
- UL 1642:2012
- Safety standard for lithium batteries
- GB/T 31241-2014
- Safety requirements for lithium-ion batteries
Applications
- Lithium battery manufacturers
- EV battery pack production
- Consumer electronics industry
- Quality inspection departments
- Third-party testing laboratories
Technical Specifications
| Parameter |
Specification |
| Model |
HC-BTEM002 |
| Sample Weight |
2kg ±100g |
| Drop Height |
400–1500mm adjustable |
| Control Method |
Button control |
| Lifting Method |
Automatic lifting |
| Drop Method |
Free fall |
| Height Accuracy |
±1mm |
| Height Display |
LED display |
| Clamping Method |
Pneumatic clamp |
FAQ
Q1: What is the maximum sample weight?
Standard is 2kg, customization is available.
Q2: Can the drop height be extended?
Yes, customized range can be designed based on requirements.
Q3: Is the machine suitable for battery packs?
Yes, it supports cells, modules, and packaged batteries.
Q4: What air pressure is required?
Minimum ≥0.4MPa compressed air.
Q5: Can it meet UN38.3 certification requirements?
Yes, it is designed for compliance testing.
