Automotive Electrical Testing Equipment with Modular Design High-Precision Measurement and Multi-Standard Compatibility

Name: Automotive Electrical Testing Equipment with Modular Design HighPrecision Measurement and MultiStandard Compatibility
Brand: HongCe
Price: 1 USD

Quality Automotive Electrical Testing Equipment with Modular Design High-Precision Measurement and Multi-Standard Compatibility for sale

Thermocouple Temperature Range : 100°C

Power Supply Voltage : 380V 50Hz

Dimensions : 2000mm * 1000mm * 1500mm

Weight : Approximately 350kg

Color : Blue-gray

Warranty : One Year

Brand Name : HongCe

Model Number : HCUN01

Certification : calibration certificate(cost additional)

Place of Origin : China

MOQ : 1set

Price : 1set

Payment Terms : T/T,L/C,D/P

Supply Ability : 1set

Delivery Time : 45 working days

Packaging Details : plywood

Contact Now

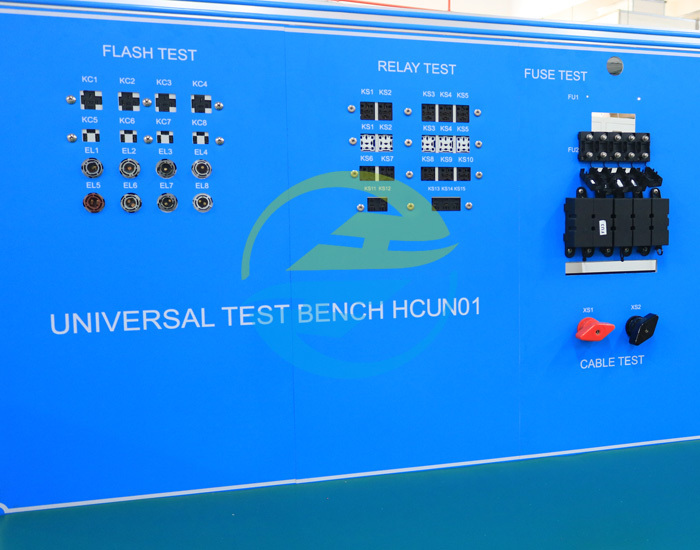

Automotive Electrical Components Universal Testing Equipment

Comprehensive Performance Test Bench for Electrical Parts, Safety Reliability & Durability Testing

The universal test bench for automotive electrical components is a high-performance testing platform that integrates advanced measurement and control technologies with extensive industry experience. This equipment can simulate a variety of harsh environmental and electrical conditions, enabling comprehensive performance evaluation and durability testing of key components such as automotive wiring harnesses, relays, sensors, and fuses.

Key Features:

Modular Design: Compatible with a variety of electrical components, flexible configuration, and fast test mode switching.
High-Precision Measurement and Control: Utilizes advanced acquisition modules to ensure data authenticity and repeatability.
Multi-Standard Compatibility: Supports testing according to international standards such as IEC, ISO, and GB/T.
Intelligent System: Touchscreen operation + automatic test report generation.
Safety Protection: Built-in overcurrent and overvoltage protection ensures the safety of both the device and the device under test.

Reference Standards:

Standard	Description
JIS D 5011	Relay Arrangement and Function Assignment
JIS D 5010	Relays
JIS D5707	Flashers
SAE J1494	Battery Booster Cables
ISO 8820	Blade-Type TYBE Fuses
DIN 7281	Low-Voltage Fuses
SAE J 554	Glass Fuses
SAE J1888	High-Voltage Fuses

Technical Parameters:

Adjustable Power Supply Voltage: 10V 1000A
Adjustable DC Power Supply: 40VDC 75A
Adjustable DC Power Supply: 40VDC 15A
Thermocouple Temperature Range: 100°C
Power Supply Voltage: 380V 50Hz
Main Unit and Components: Made of rust- and corrosion-resistant materials (customizable)
Dimensions: 2000mm * 1000mm * 1500mm (customizable)
Weight: Approximately 350kg

Test Objects:

Automotive relays
Electric motors (fans, wipers, lifters, etc.)
Ignition coils
Electronic control modules (ECUs)
Switches and sensors
Automotive lighting system components
Power harnesses and connectors

Testing Items:

Electrical performance testing (voltage, current, power)
Insulation resistance testing
Continuity and durability testing
Electrical life cycle testing
Functional reliability verification
High and low temperature environment simulation testing
Electromagnetic compatibility (EMC) testing
Ingress protection (IP) verification

Detailed photos:

Automotive Electrical Testing Equipment with Modular Design High-Precision Measurement and Multi-Standard Compatibility
